CMC-0668-CU-G (AG-R)

Summary:

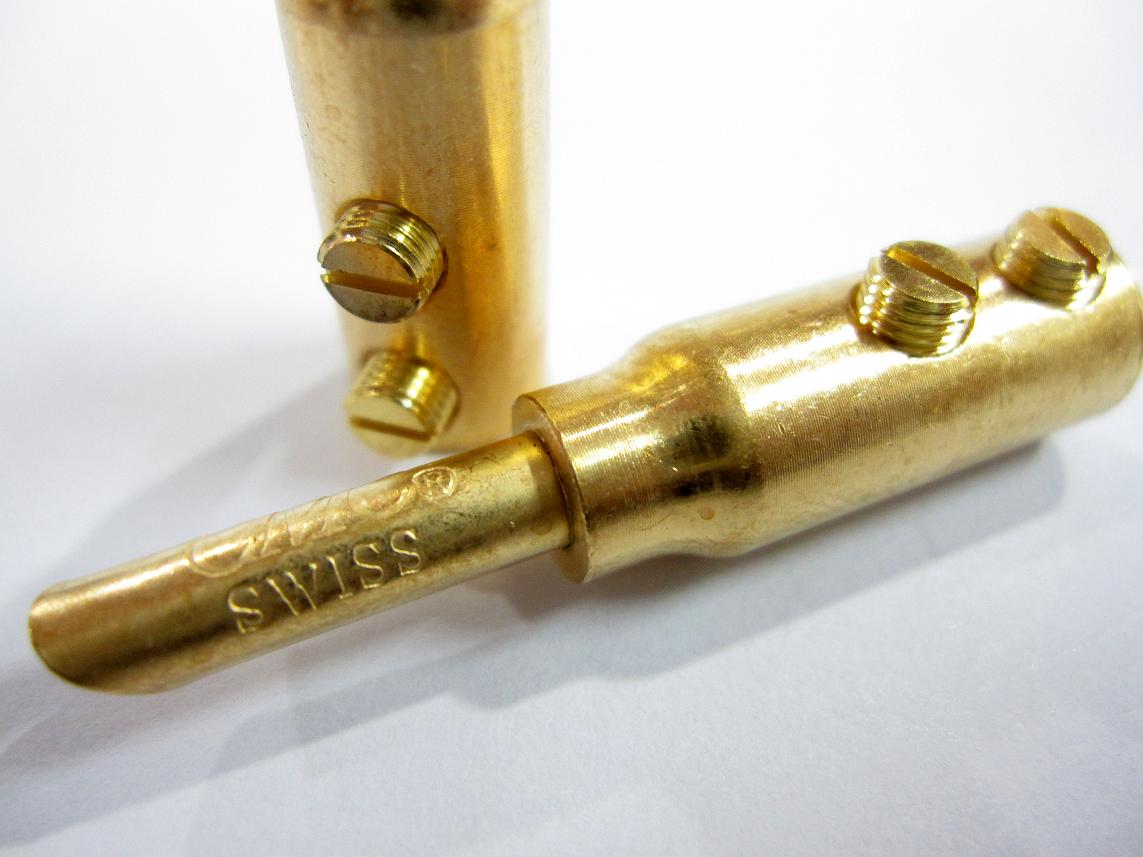

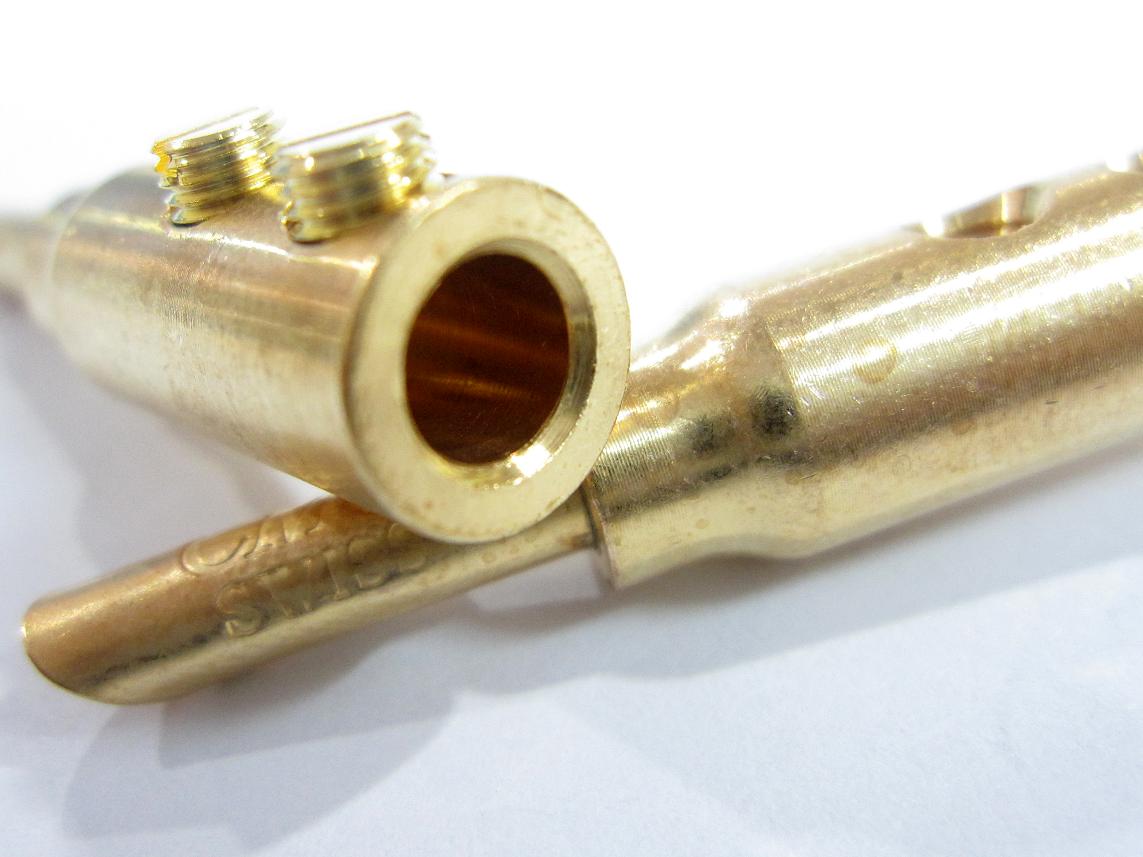

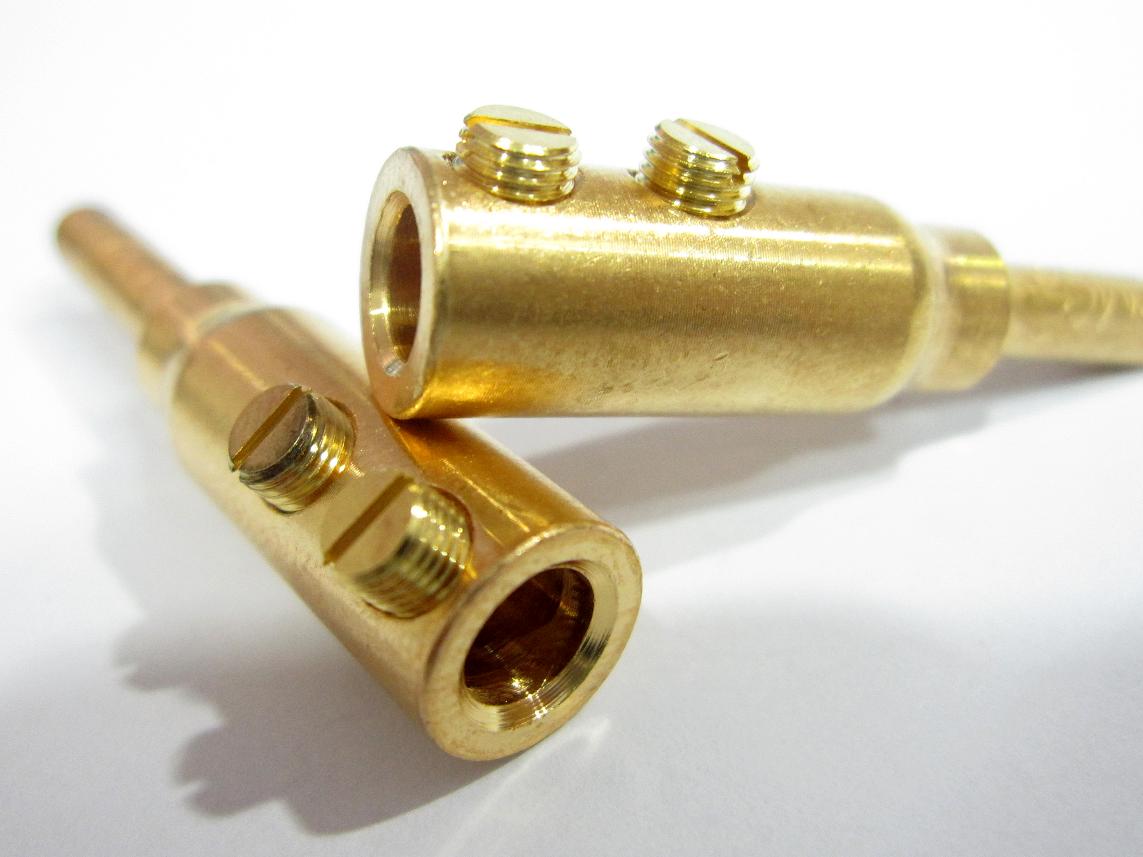

. High Performance Audio Spade Terminals
. G-Gold-plated  (AG-Silver Plated)(R-Copper Plated)
Material: Housing-Pure copper


Features:
Connections: Set-screw or Soldered
. Contact pin specially designed to increase contact area and effect stable more transmission.
. Unique main body design that ensures very firm wire connections that can be fixed by set screw or soldered.
. Material:Banana Conductor- Phosphor Bronze
               Housing-Pure copper


Specifications:

. Specifications: Max. Wire diameters up to 5.0mm

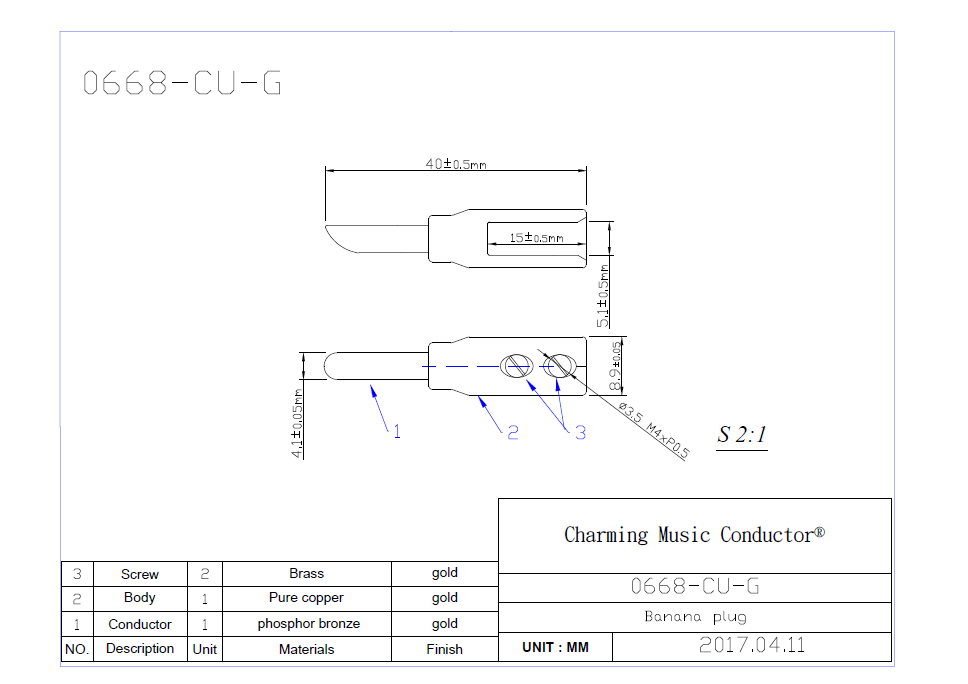

. Dimensions:
    Housing: 8.9mm X 24 mm
    Banana Conductor: 4.1mm X 16mm ±0.5mm
    Overall length : 40mm ±0.5mm
