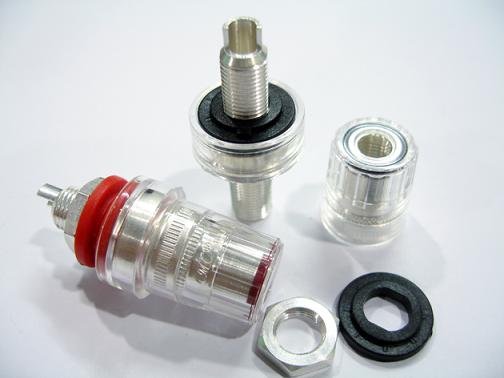

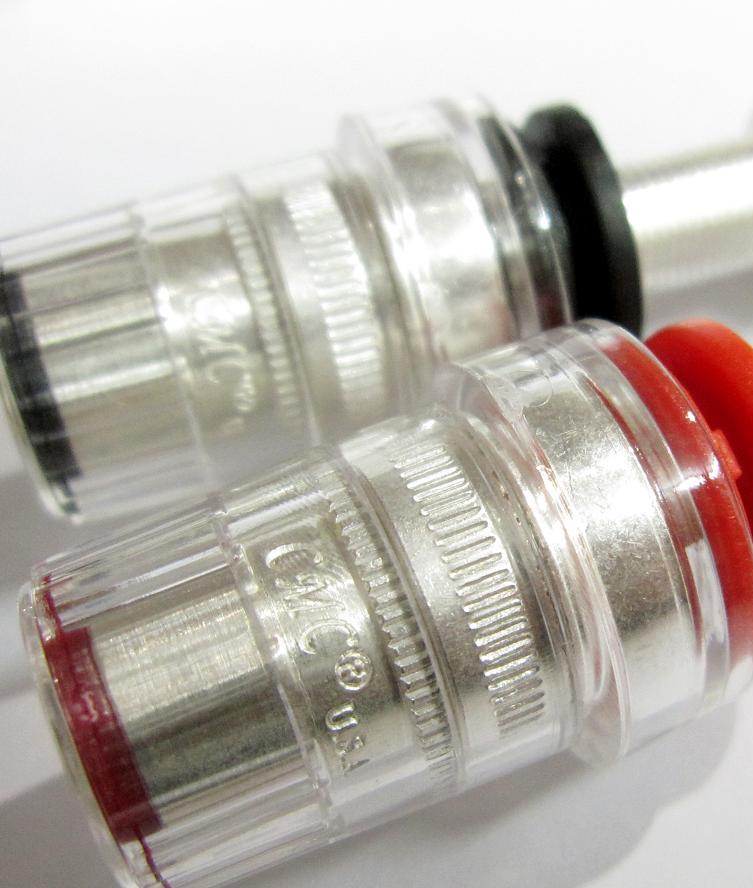

CMC-858-S-AG
Summary:
. High End Performance Binding posts
. Silver Plated


Features:

. High-quality brass
.
 Polycarbonate(PC) insulation
. POM spacer (red, black)
. Connections: Soldered
. Specified for core diameters up to 4.00mm



Dimensions:

. Mounting Insulation set  POM(Red, White),16mm ±0.1mm diameter X 3mm± 0.1mm thick.
.. Body: 40mm ± 0.2mm overall length
.. Use of open holes: 12mm ±0.5mm
.. Maximum applicable panel thickness : 7.50mm
