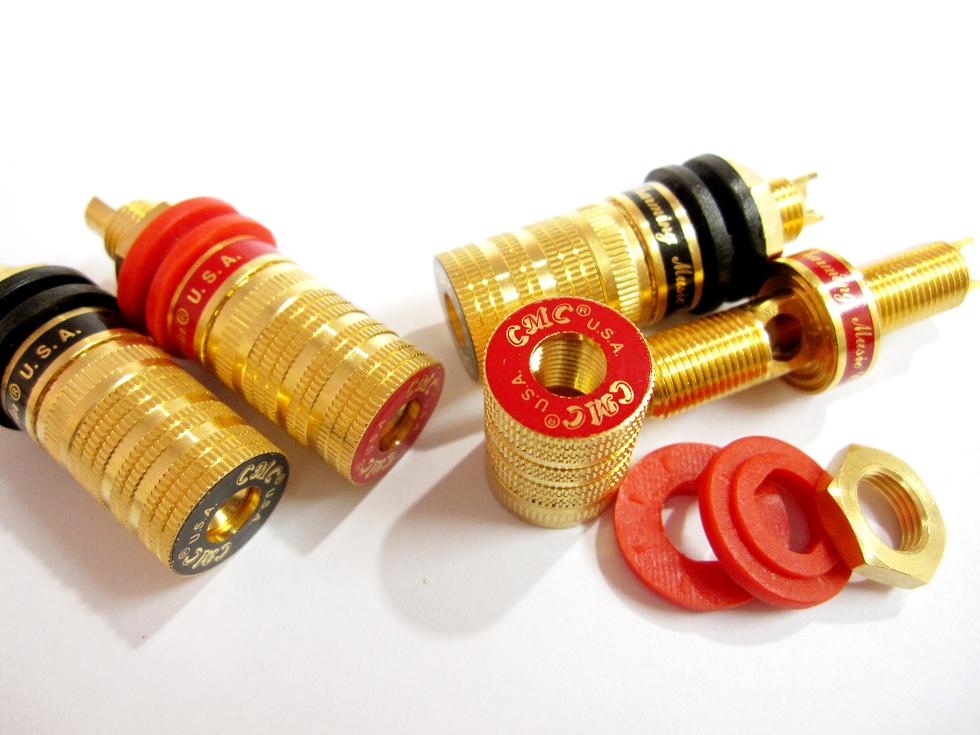

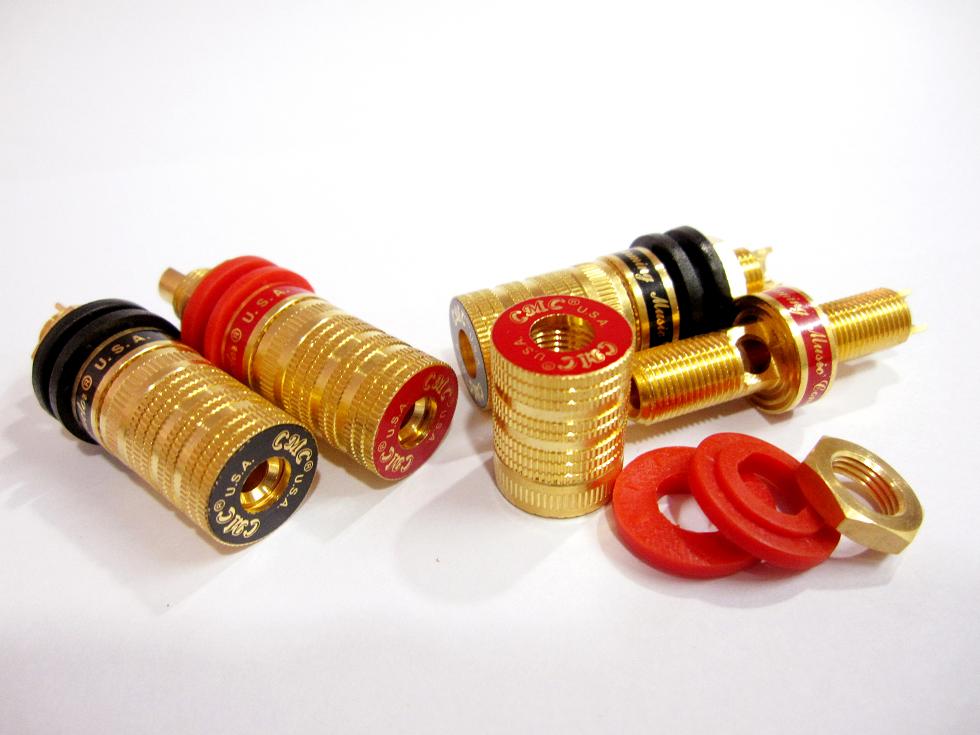

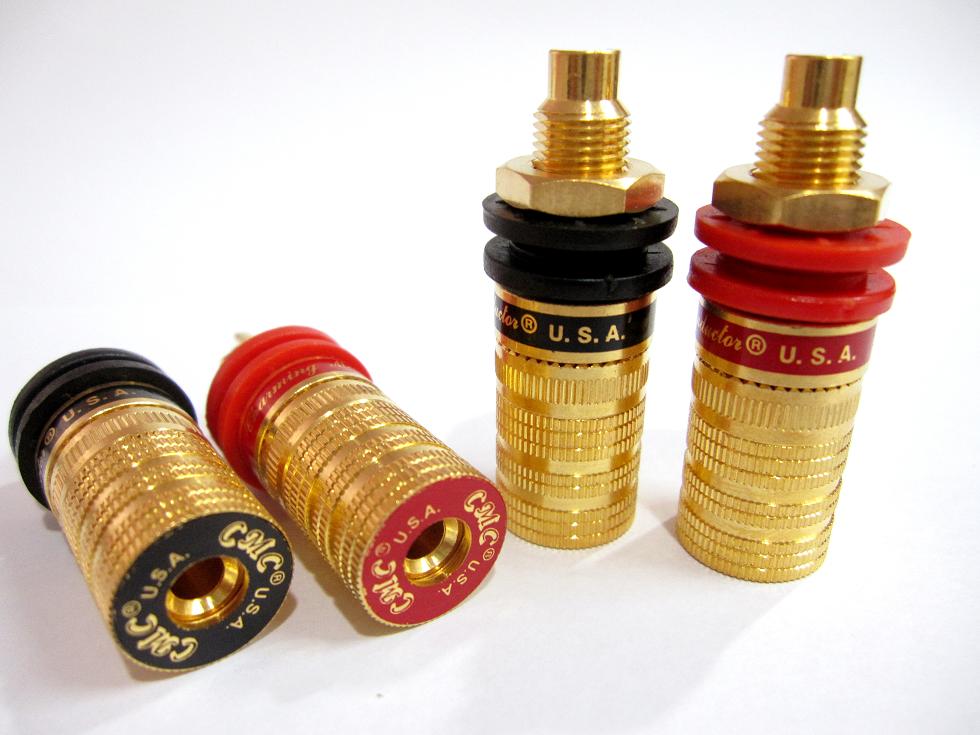

CMC-838-S


Specifications:
. High End Performance Binding posts
. Gold Plated


Features:
. High-quality brass
. Non-magnetic direct Gold Plated
POM spacer (red, black)
. Connections: Soldered
. Specified for core diameters up to 4.00mm

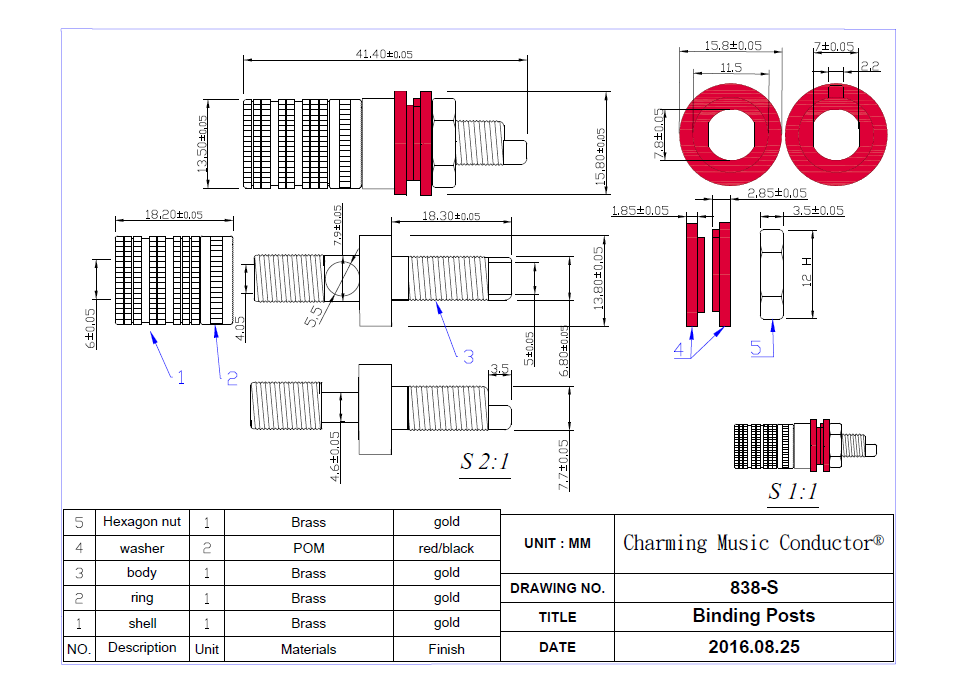

Dimensions:
. Mounting Insulation set  POM(Red, Black),16mm ±0.1mm diameter X 3mm± 0.1mm thick.
.. Body: 40mm ± 0.2mm overall length
.. Use of open holes: 12mm ±0.5mm
.. Maximum applicable panel  thickness : 8.50mm
