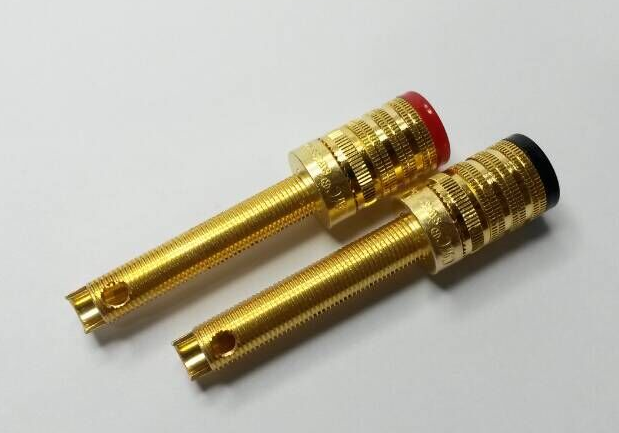

CMC-838-L-CU-G (AG)
 Specifications:

. High End Performance long Binding posts
Pure copper
. G - Gold Plated
. AG-Silver Plated


Features:

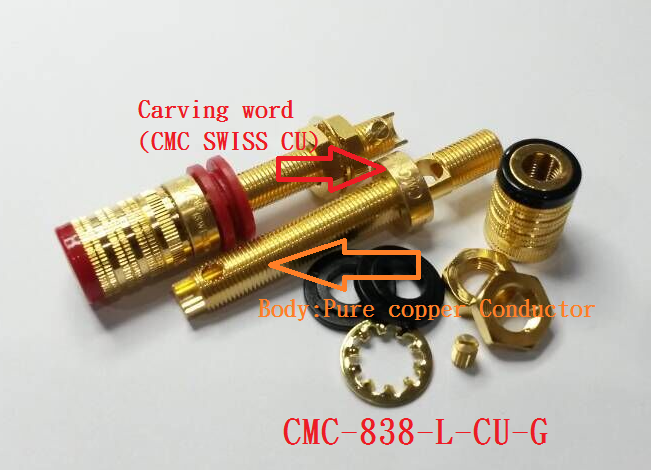

Pure copper Conductor
. Non-magnetic direct Gold Plated  (AG-Silver Plated)
. POM spacer (red, black)

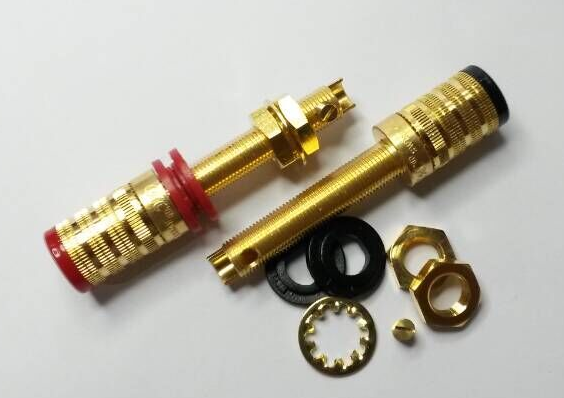

. Connections: Soldered or Set-screw
. Specified for core diameters up to 4.00mm


Dimensions:
. Mounting Insulation set  POM(Red, Black),16mm ±0.1mm diameter X 3mm± 0.1mm thick.
.. Body: 62mm ± 0.2mm overall length
.. Use of open holes: 12mm ±0.5mm
.. Maximum applicable panel thickness :25mm
