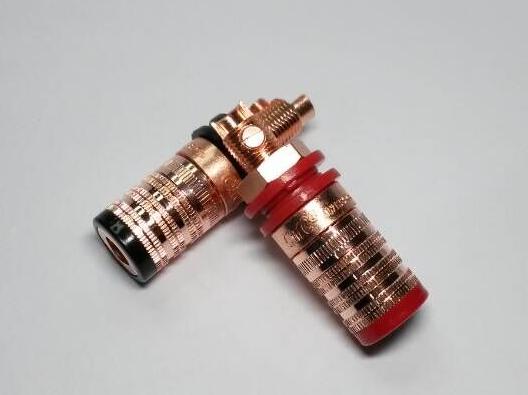

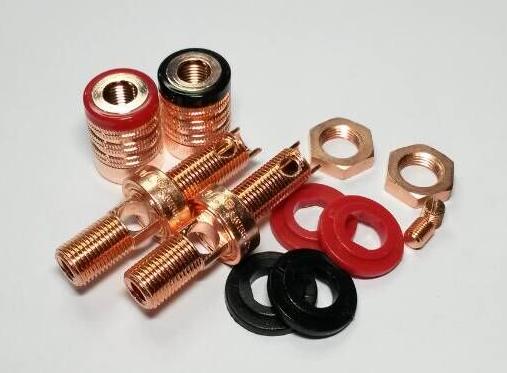

CMC-838-S-CU-R
 Summary:
. High End Performance Binding posts
. R - Copper Plated


Features:
Pure copper Conductor
. POM spacer
(red, black)
. Connections:
Soldered or Set-screw
. Specified for core diameters up to 4.00mm




Dimensions:
. Mounting Insulation set  POM(Red, Black),16mm ±0.1mm diameter X 3mm± 0.1mm thick.
.. Body: 42mm ± 0.2mm overall length
.. Use of open holes: 12mm ±0.5mm
.. Maximum applicable panel thickness : 10.50mm
