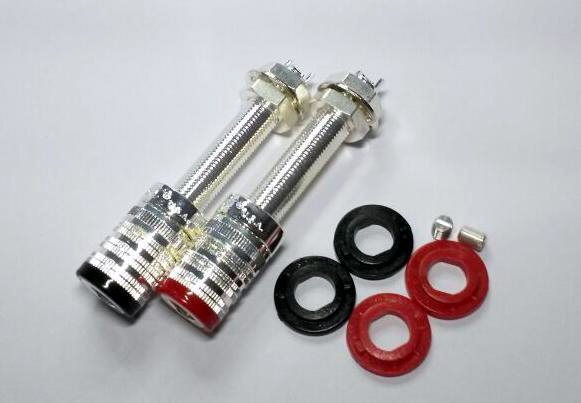

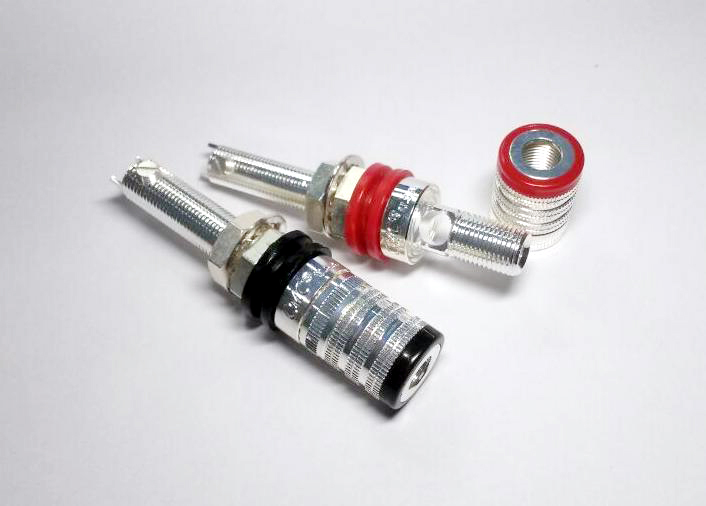

CMC-838-L-AG
 Specifications:

. High End Performance long Binding posts
Silver Plated


Features:
. High-quality brass
Silver Plated
POM spacer (red, black)
. Connections: Soldered or Set-screw
. Specified for core diameters up to 4.00mm


Dimensions:
. Mounting Insulation set  POM(Red, Black),16mm ±0.1mm diameter X 3mm± 0.1mm thick.
.. Body: 62mm ± 0.2mm overall length
.. Use of open holes: 12mm ±0.5mm
.. Maximum applicable panel thickness : 25mm
