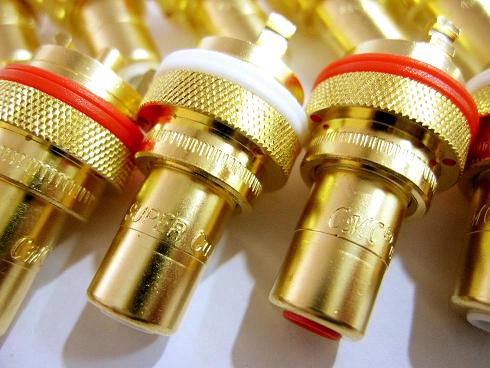

CMC-805-2.5F


Summary:

. High Performance RCA Terminal Sockets
. Gold Plated


Features:
. High-quality brass housing and Nut cap (Double Gold Plated)
. PBT (red, white) Inner insulator.
. PA66 (red, white) Mounting Insulation
. Connections: Soldered


Specifications:

. Mounting Insulation set  PA66(Red, White),16mm ±0.1mm diameter X 2mm± 0.1mm thick,
.. Body: 29.5mm ± 0.2mm overall length
.. Nut: 15.50mm ±0.1mm  wide X 7.2mm ±0.02mm thick
.. Use of open holes: 11mm
