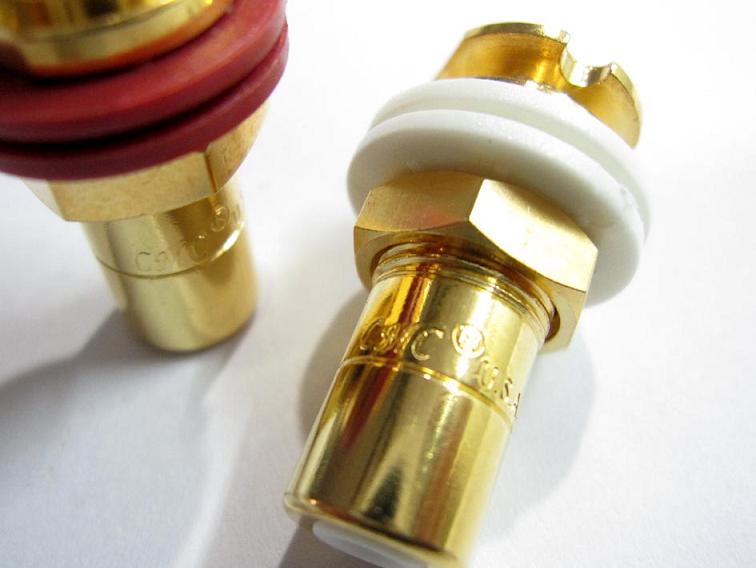

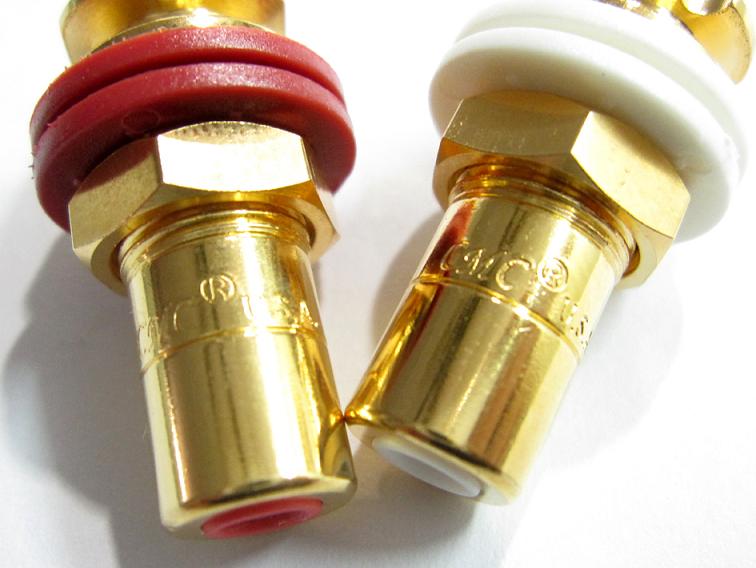

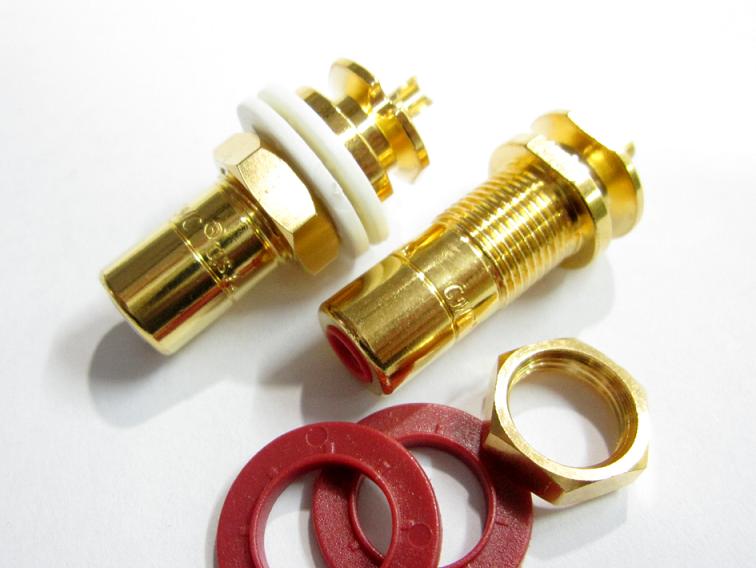

CMC-816-U

Summary:
. High Performance RCA Terminal Sockets
. Gold Plated Conductor


Features:
. Gold Plated
. High-quality brass housing and Nut cap
. PBT (red, white) Inner insulator.
. PA66 (red, white) Mounting Insulation.
. Connections: Soldered


Specifications:
. Mounting Insulation set  PA66(Red, White),15.50 ±0.1mm diameter X 2mm± 0.1mm thick,
.. Body: 29.50mm ± 0.2mm overall length
.. Nut: 11mm ±0.1mm  wide X 3.5mm ±0.1mm thick
.. Use of open holes: 10mm
