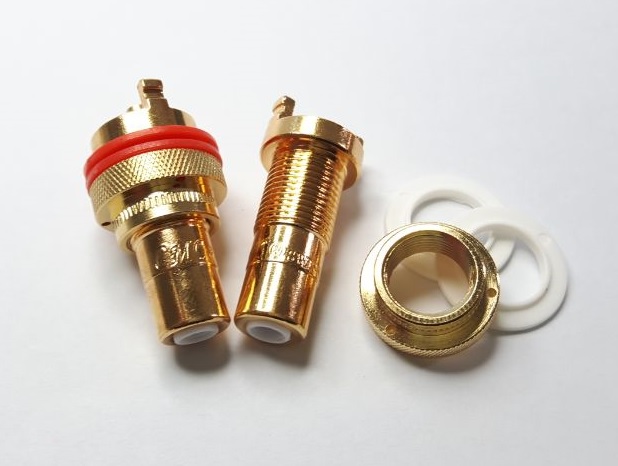

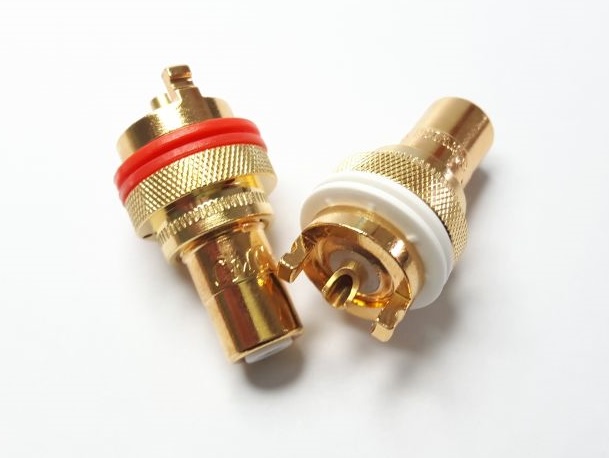

CMC-805-CU-G

Summary:
. High Performance RCA Terminal Sockets
. Pure copper
. G - Gold Plated



Features:

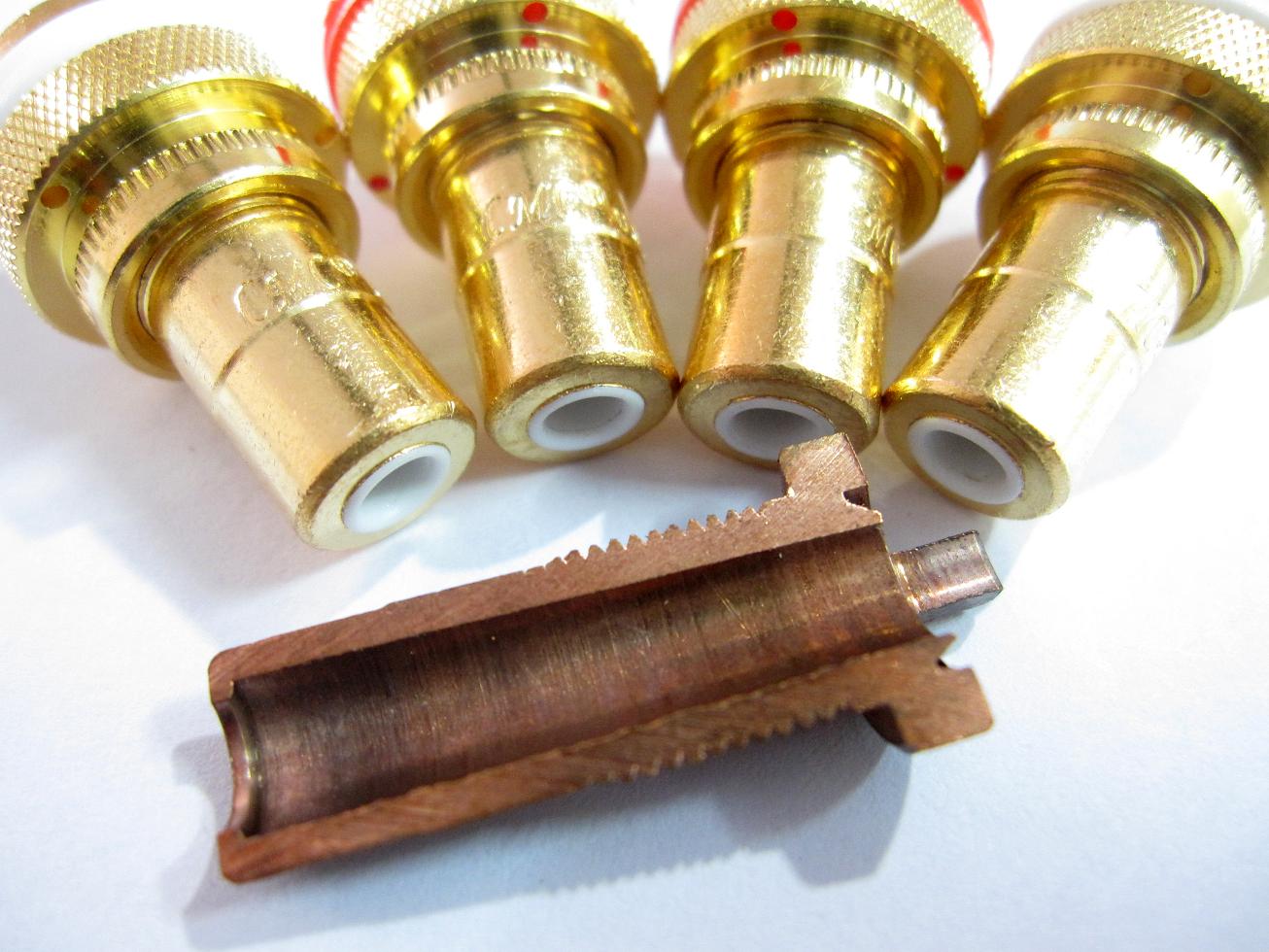

. Body & Pin :Pure copper
. Non-magnetic direct Gold Plated
. Teflon (white) Inner insulator.
. PA66 (red, white) Mounting Insulation set.
. Connections: Soldered


Specifications:
. Mounting Insulation set  PA66(Red, White),16mm ±0.1mm diameter X 2mm± 0.1mm thick,
.. Body: 29.5mm ± 0.2mm overall length
.. Nut: 15.50mm ±0.1mm  wide X 7.2mm ±0.02mm thick
.. Use of open holes: 11mm
