Specifications:

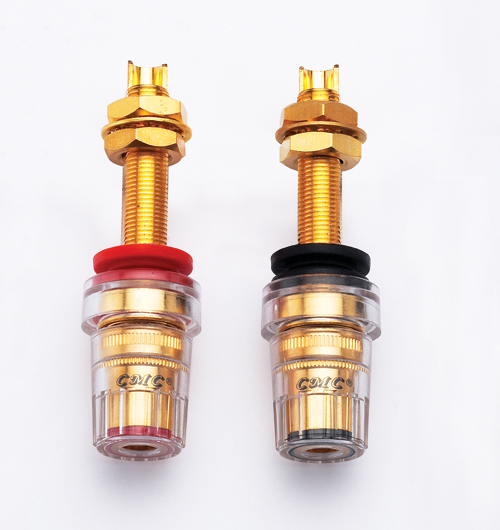

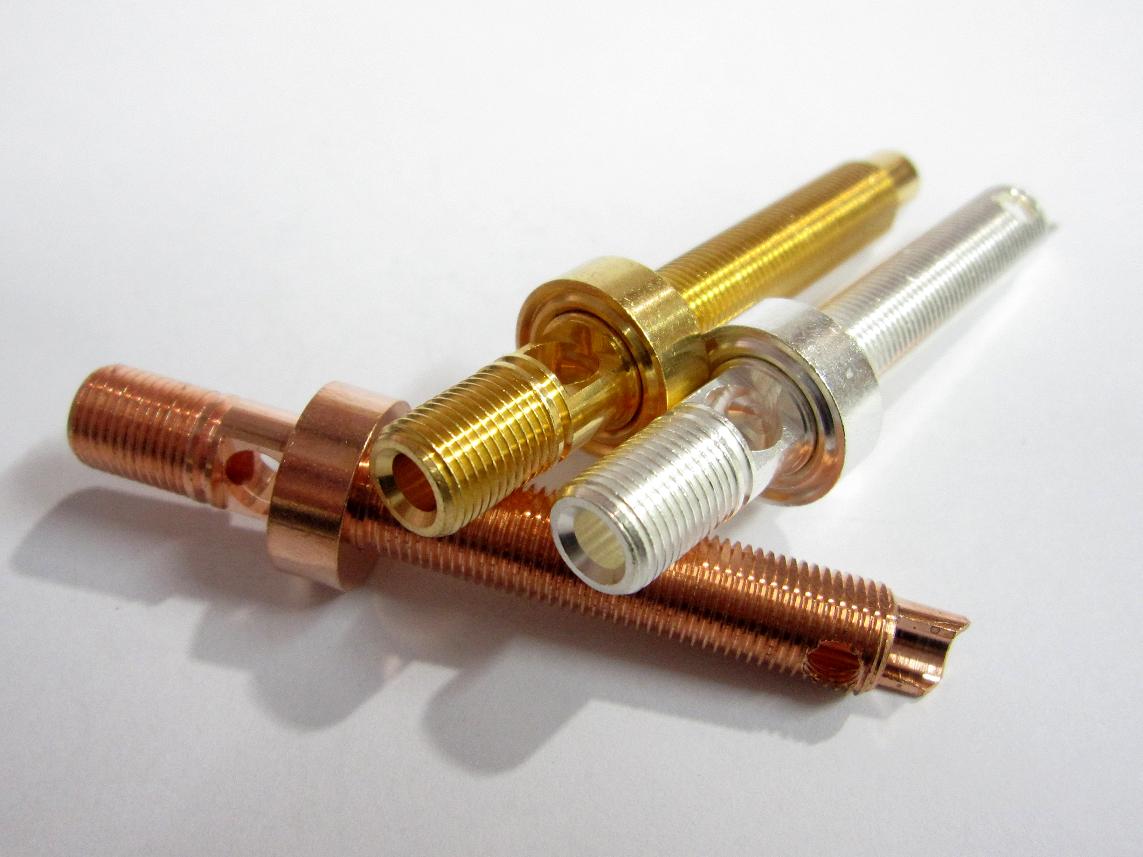

. High End Performance long Binding posts
. Pure copper
. G - Gold Plated

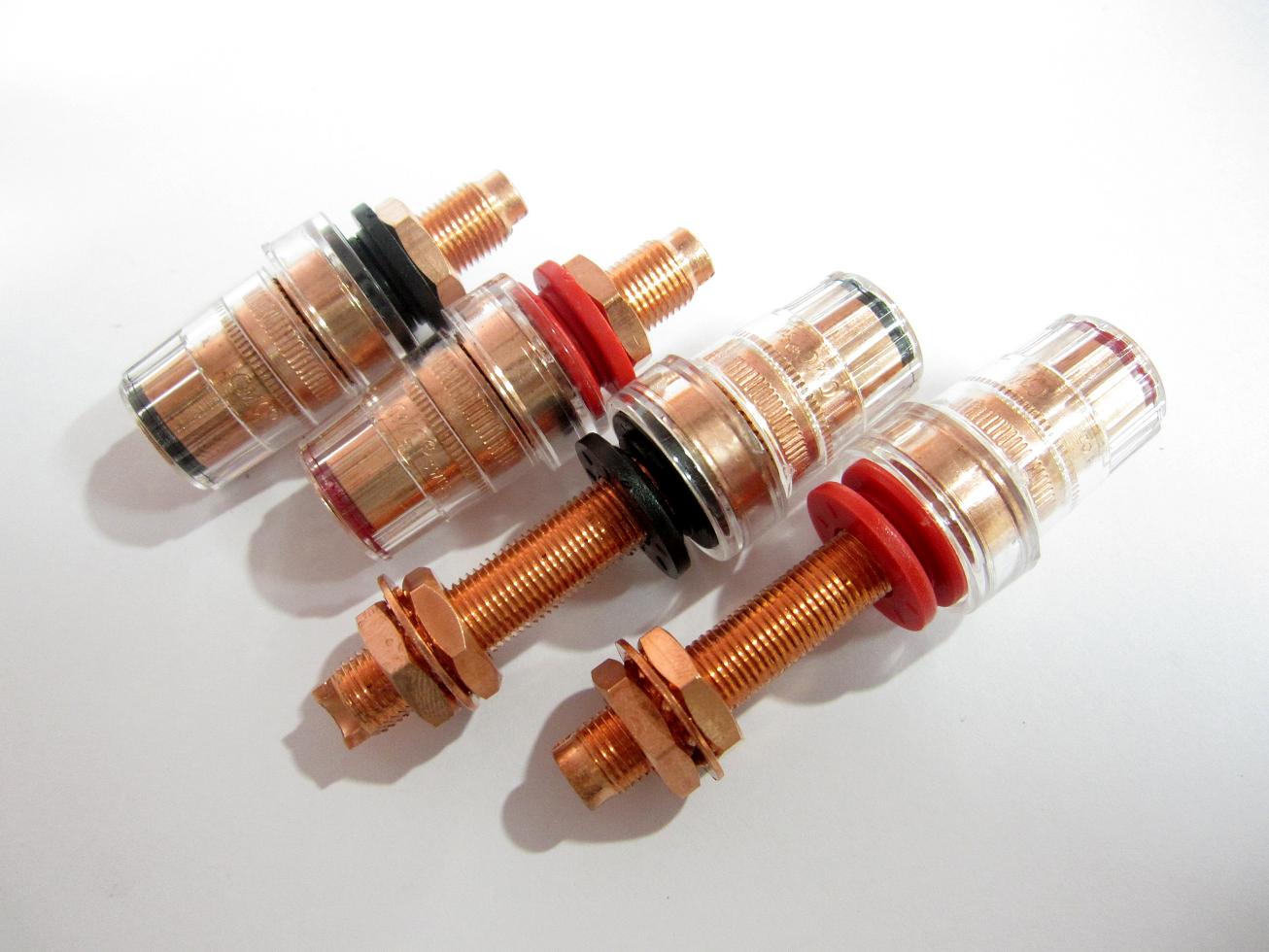

. R - Copper Plated
. AG-Silver Plated


Features:
. Pure copper Conductor
.  Gold Plated
   (R-Copper Plated; AG-Silver Plated)
. Polycarbonate(PC) insulation
. POM spacer (red, black)
. Connections: Soldered or Set-screw
. Specified for core diameters up to 4.00mm

Dimensions:
. Mounting Insulation set  POM(Red, Black),16mm ±0.1mm diameter X 3mm± 0.1mm thick.
.. Body: 62mm ± 0.2mm overall length
.. Use of open holes: 12mm ±0.5mm
.. Maximum applicable panel thickness : 24mm
